Belt Filter Press Machine (BFP)

Sludge Dewatering Device

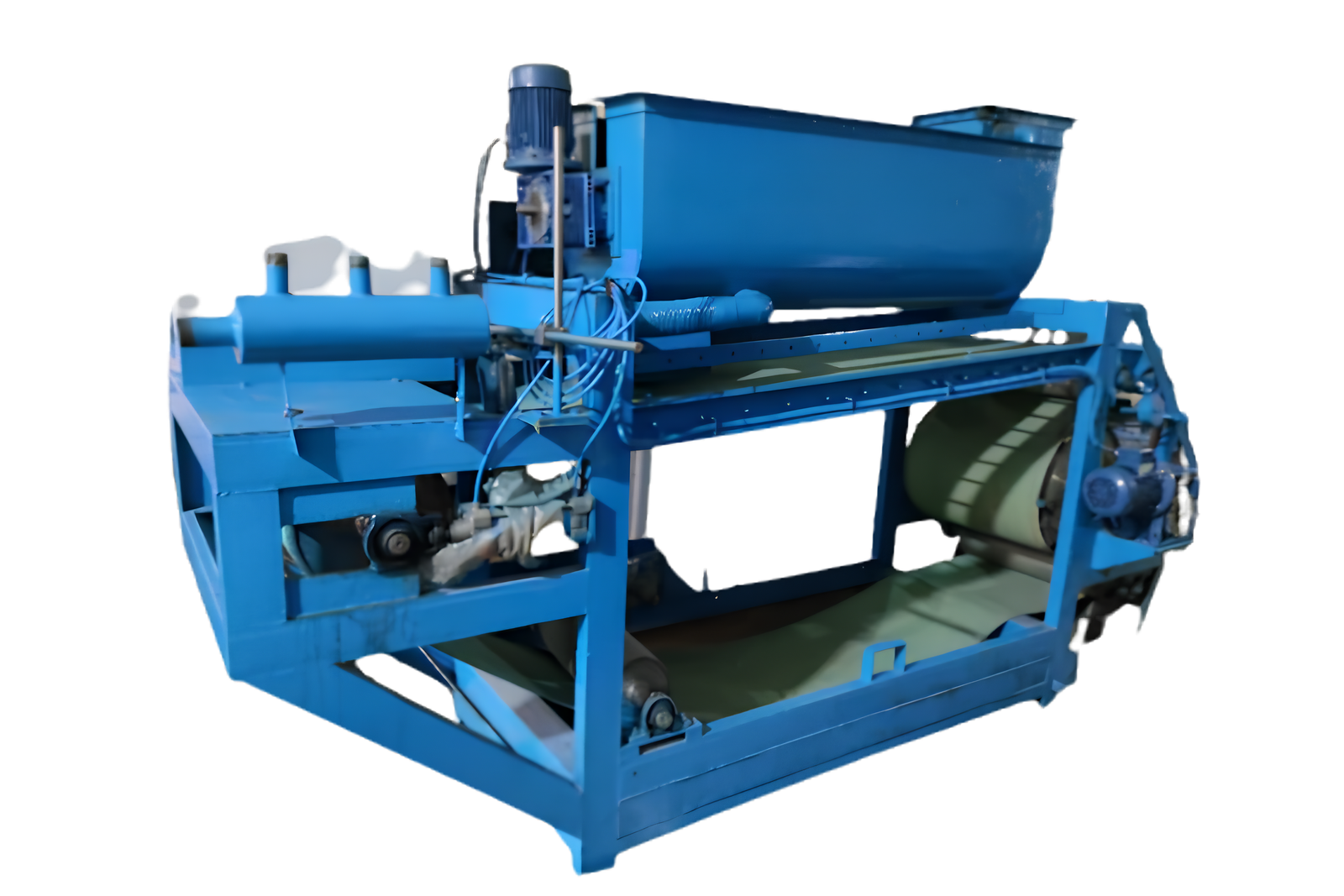

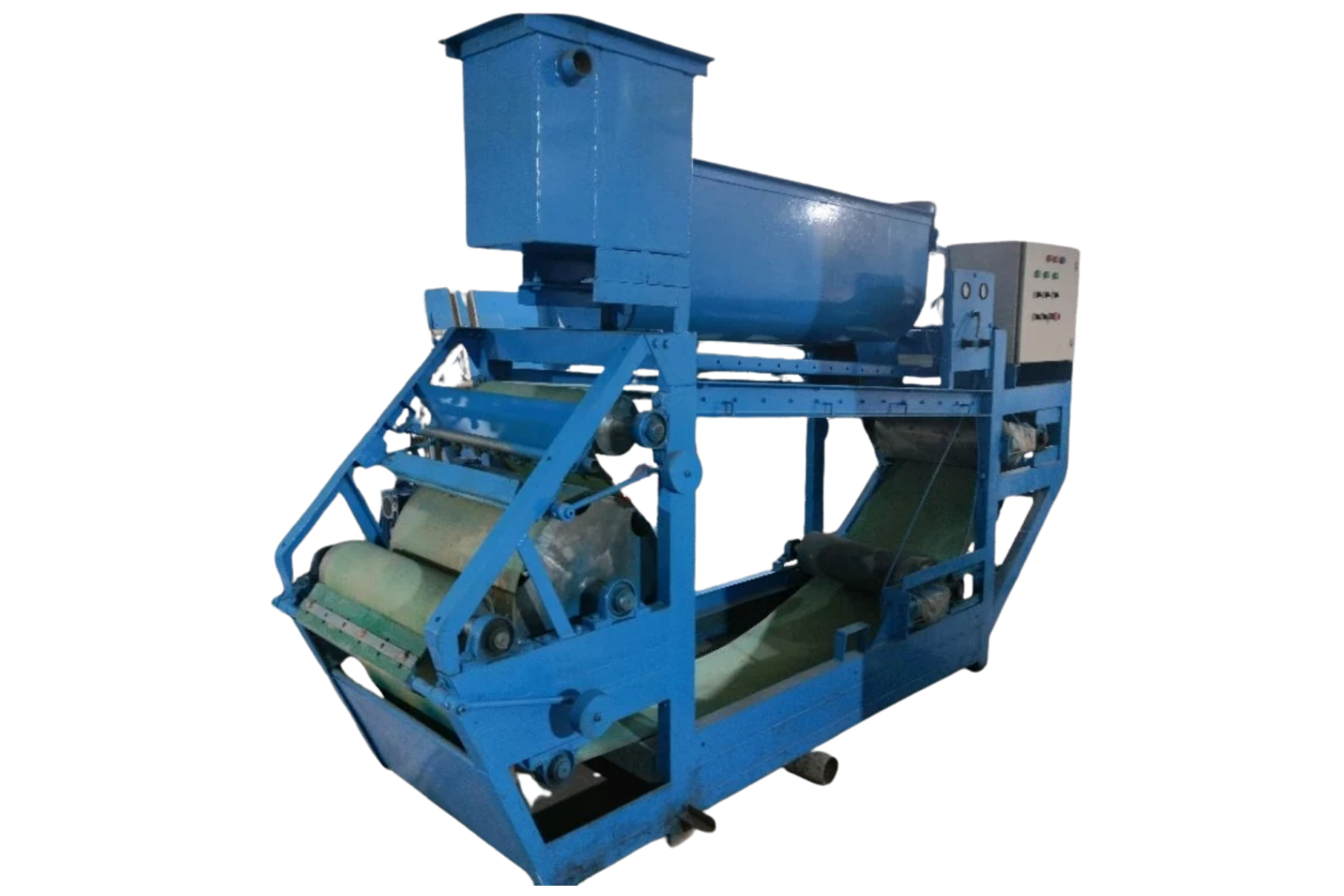

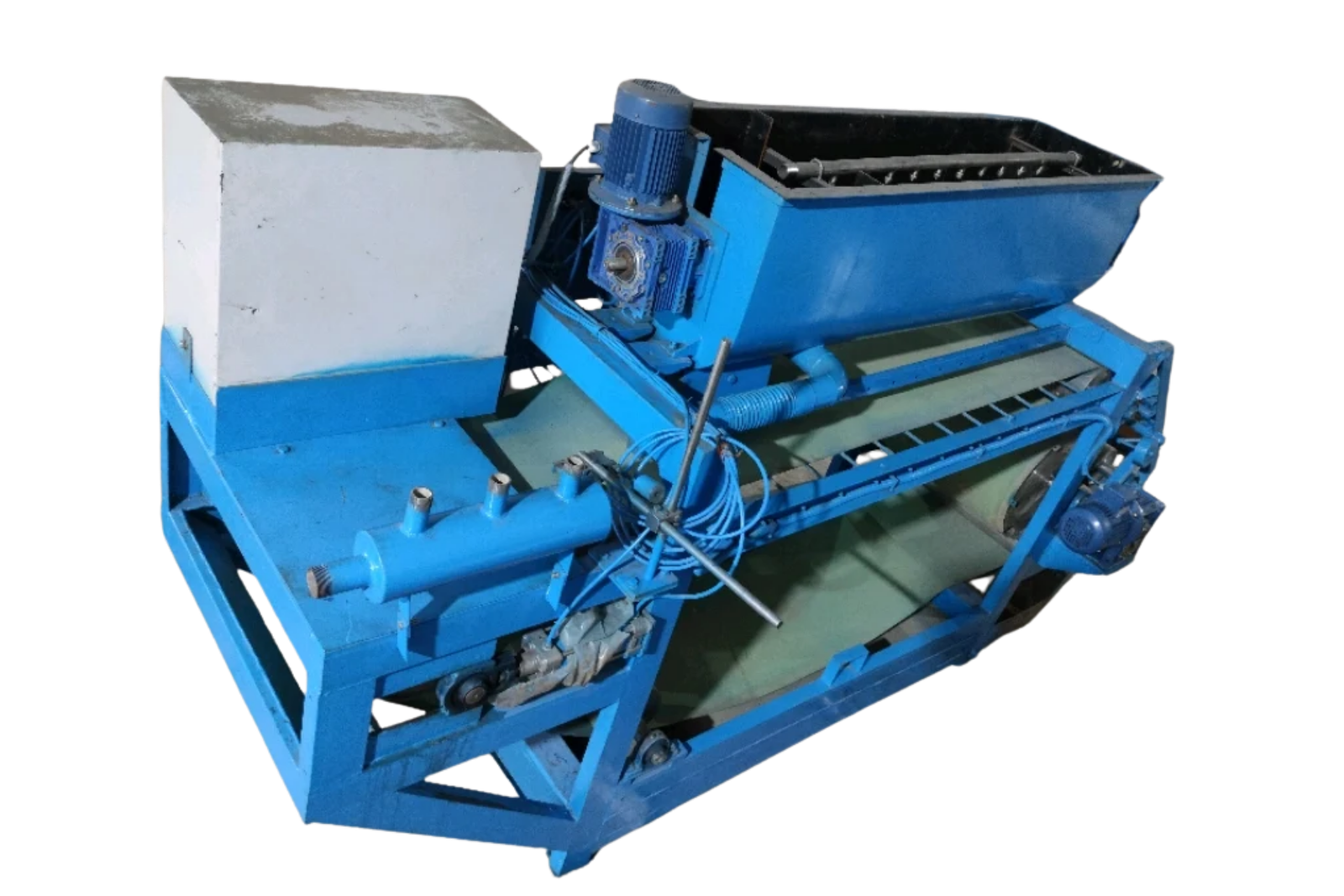

Belt Filter Press (BFP)

A Belt Filter Press is a sludge dewatering device that applies mechanical pressure to chemically conditioned slurry. The slurry gets sandwiched between two tensioned belts through a serpentine of decreasing diameter of rollers arrangements.

The machine operates across three distinct zones:

Gravity Zone: Where water is drained by gravity through the porous belt.
Wedge Zone: Where the solids are prepared for pressure application.
Pressure Zone: Where pressure is increased gradually to the conditioned sludge.

Request a Quote

Why Choose Our Machine

Advantages of BFP

High
Efficiency

Achieves superior dryness and a high solid capture rate, driven by an advanced slurry distribution unit that maximizes yield and output quality.

Stable
Operation

Highly reliable and stable in operation. It features a compact structure that requires small space to install, while remaining easy to operate and maintain.

Cost
Effective

Designed for a wide range of applications with noticeably low energy consumption and longer service time, ensuring long-term sustainability.

Technical Details of BFP

Model	Belt Width (mm)	Electric Load (HP)	Dimension (LxWxH)(m)	Air Req.	Wash Water
TPF/BFP/6	600	0.5	3.9 × 1.0 × 1.3	1M³/hr	4m³/hr
TPF/BFP/12	1200	1.0	3.9 × 1.6 × 1.3	1M³/hr	6m³/hr
TPF/BFP/15	1500	1.5	3.9 × 1.9 × 1.3	1M³/hr	9m³/hr
TPF/BFP/18	1800	1.5	3.9 × 2.2 × 1.3	1M³/hr	10m³/hr
TPF/BFP/22	2200	1.5	3.9 × 2.6 × 1.3	1M³/hr	12m³/hr
TPF/BFP/26	2600	2.0	3.9 × 3.0 × 1.3	1M³/hr	14m³/hr

Years Experience

Clients Across India

Repeat Clients Rates

Equipments Installed

See It In Action

Watch how our Belt Filter Press machine ensures effective solid capture and high dryness via mechanical pressure.
